JMC CROSS Bearings are Cylindrical Roller Bearings with forged one piece bush, mainly used for heavy duty applications in steel plants and rolling mills.

Oil sealing is properly done to avoid the lubricant losses and also to avoid the penetration of water or impurities, inside the Bearings.

JMC UJ Cross Bearings can work :
Under proper load with safety operations.
Long rating life with free workmanship.
Smooth running without vibration.

JMC Journal Cross Assemblies can be supplied with Lubrication Systems :
1) Central Lubrication
2) Bush Lubrication (4 Point Lubrication)

JMC Journal Cross Assemblies & Cross Bearings are lubricated with Lithium base Grease for ready to use.

  • Apart from sizes mentioned in this catalogue we can manufacture Complete Journal Cross Assemblies and Cross Bearings as per customer requirements.
  • Also we can refurbish the cross and make suitable bearings for the same.
  • We may require one sample for development of new sizes.

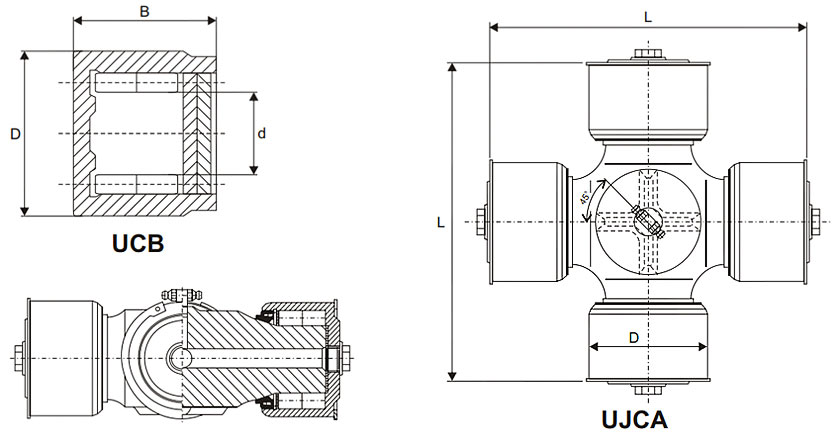

Universal Joint Journal Cross Bearings
JMC. Reference No. S I Z E (mm)
Bearing No. UJ Cross assembly No. d D B L
UCB-B-49/83/56 UJCA-A-CLU-83-224 49 83 56 224
UCB-B-66/102/62 UJCA-A-CLU-102-215 66.5 102 62 215
UCB-B-57/95/70 UJCA-A-CLU-95-220 57.15 95 69.5 220
UCB-B-50/83/72   50 83 72
UCB-B-50/71/45   50 71.4 45
UCB-B-51/83/60   51.3 83 60
UCB-B-51/83/68   51.3 83 68
UCB-B-60/95/105   60.5 95 105
UCB-B-65/85/43   65.2 85 43.5
UCB-B-99/145/96   99 145 96
UCB-B-105/145/172   105 145 172
UCB-B-114/177/76   114.30 177.80 76
UCB-B-158/215/136   158 215 136
UCB-B-173/250/151   173 250 151.75
UCB-B-173/250/151   173 250 151.75 / 91.96
UCB-B-184/287130   184.15 287 130
UCB-B-229.5/302-343/215   229.5 302/343 215

CLU = Central Lubrication

Enquiries are solicited for : -
  • The Complete Journal Cross Assemblies.
  • The Cross Bearings as per customer requirement.
  • Refurbishing of worn out Cross Assembly with Bearings.
