Bearings with Flexible Rollers are ideal to withstand shock loads like Hot Rolling Mills, Pigcast conveyers, continuous casting Rolls & Dusty atmosphere like coal crushers and Roller hearth furnace.

JMC Flexible Roller Bearings are made of series of helically wound rollers which are assembled alternately right hand and left hand in a hardened steel retaining cage. This cage accurately aligns & spaces the roller and consists of two retaining rings which are held in a parallel & concentric position by stay-bars. These stay bars are shouldered at each end and riveted with a domed head. The retaining rings are counter bored to a suitable depth to ensure that the rivet heads do not project beyond the face of the ring.

The Rollers which are the most important part of the Bearing are made from billets of spring steel. When in strip form they are helically wound with right or left hand spirals and then accurately cut off to length. They are then chamfered, heat-treated and ground to very accurate sizes.

The inner and outer races are steel cylinders of chrome steel hardened and ground to precision limits and high finish. The complete bearing thus made up of three separate units. The fact that the inner race can be mounted on the shaft and the outer race fitted in the housing separately while the roller assembly can be inserted when the components parts of the machine are brought together at a later stage is a feature which is appreciated by engineers as it very often makes possible considerable economy in production.

Flexible Roller Bearings are used where there is a heavy shock load & the surrounding temperature is more than 80ºC

Flexible Roller Bearings with flexible inner and outer races are also used where there is space restriction. These flexible races involves very less thickness and cross section but at the same time can take up heavy load. Such bearings are very popular in Hot Rolling Mills.

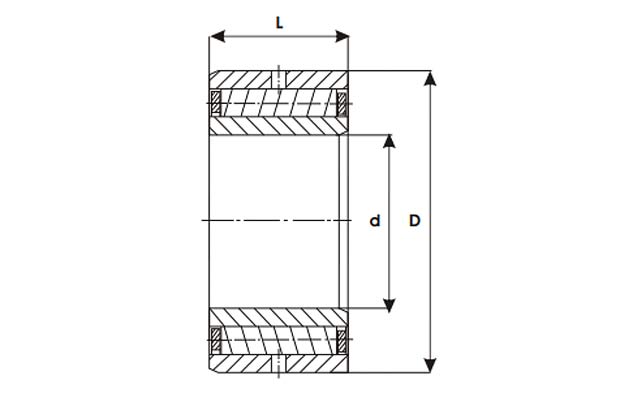

FLEXIBLE ROLLER BEARINGS WITH SOLID INNER AND SOLID OUTER RACE

Flexible Roller Bearings
JMC. No S I Z E (mm) Basic load rating - C(in Tons) WT. Kg EQV. No.
d D L Dyn. C Static Co POLLARD HYATT EICH GPZ (USSR)
FRB-B-35/78/45 35 78 45 1.9 4.9 0.9
FRB-B-40/80/34 40 80 34.9 1.9 4.9 0.9 FLW 40 W 208 40 F2
FRB-B-45/85/39 45 85 39.7 2.5 6.4 1.2 FLW 45 W 209 45 F2
FRB-B-50/90/44 50 90 44.5 3.0 7.5 1.3 FLW 50 W 210 50 F2 5210K
FRB-B-55/100/46 55 100 46 3.6 9.2 1.8 FLW 55 W 211 55 F2
FRB-B-60/110/49 60 110 49.2 4.2 10.6 2.2 FLW 60 W 212 60 F2 5212
FRB-B-65/120/38 65 120 38.1 4.5 11.3 2.2 FL 65 213 65 F1
FRB-B-65/120/52 65 120 52.4 4.8 12.0 3.0 FLW 65 W 213 65 F2
FRB-B-70/125/60 70 125 60.3 6.1 15.3 3.6 FLW 70 W 214 70 F2
FRB-B-75/130/66 75 130 66.7 7.2 18.3 4.1 FLW 75 W 215 75 F2 5215
FRB-B-80/140/66 80 140 66.7 7.6 19.2 4.9 FLW 80 W 216 80 F2 5216
FRB-B-85/150/69 85 150 69.9 8.3 21.0 5.8 FLW 85 W 217 85 F2 5217
FRB-B-90/160/71 90 160 71.4 8.9 22.4 6.9 FLW 90 W 218 90 F2 5218
FRB-B-95/170/76 95 170 76.2 9.8 24.6 8.2 FLW 95 W 219 95 F2
FRB-B-100/180/82 100 180 82.6 11.3 28.4 10.0 FLW 100 W 220 100 F2 5220
FRB-B-110/200/88 110 200 88.9 14.1 35.4 13.6 FLW 110 W 222 110 F2 5222
FRB-B-120/215/98 120 215 98.4 16.8 42.3 17.2 FLW 120 W 224 120 F2 5224
FRB-B-130/230/108 130 230 108 18.8 47.3 21.7 FLW 130 W 226 130 F4 5826K
FRB-B-140/250/120 140 250 120.7 23.7 59.5 28.1 FLW 140 W 228 140 F3 5228
FRB-B-150/270/120 150 270 120.7 24.8 62.1 32.9 FLW 150 W 230 150 F2 5230
FRB-B-160/290/123 160 290 123.8 28.2 70.7 39.8 FLW 160 W 232 160 F2 5232
FRB-B-170/310/136 170 310 136.5 32.5 81.4 50.0 FLW 170 W 234 170 F1
FRB-B-180/320/149 180 320 149.2 37.8 94.9 56.9 FLW 180 W 236 180 F 5236
FRB-B-200/340/174 200 340 174.6 49.8 124.9 72.0 FLW 200 SW 240
ASW 240 H
200 F2 5740
FRB-B-220/380/174 220 380 174.6 54.1 136.2 92.4 FLW 220 SW 244 220 F1 5744
FRB-B-240/360/114 240 360 114.3 33.6 85.0 44.9   S 148 240 F 5748
FRB-B-280/420/127 280 420 127 44.5 111.5 68.8   S 156 280 F 5756

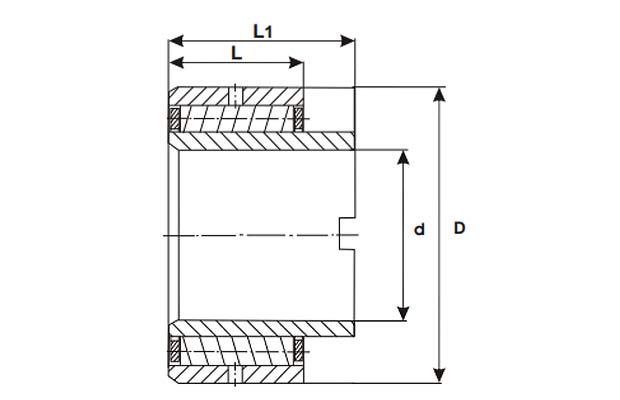

FLEXIBLE ROLLER BEARINGS WITH SOLID INNER (EXTENDED) & SOLID OUTER RACE

Flexible Roller Bearings
JMC. No S I Z E (mm) Basic load rating - (in Tons) WT. Kg. EQV. No.
d D L L1 Dyn. C Static Co HYATT EICH GPZ (USSR)
FRBE-B-100/180/58/92 100.01 180 58.7 92.1 7.4 18.6 8.1 TX 220 100 P1 --
FRBE-B-100/180/82/92 100.01 180 82.6 92.1 11.3 28.4 10.3 TXW 220 100 P2 --
FRBE-B-101/180/58/111 101.6 180 58.7 111.1 7.4 18.6 10.4 T 220 101 P1 --
FRBE-B-101/180/82/111 101.6 180 82.6 111.1 11.3 2.84 10.6 TW 220 101 P2 --
FRBE-B-114/200/88/111 114.3 200 88.9 111.1 14.1 35.4 13.7 TW 222 114 P --
FRBE-B-125/230/79/117 125.4 230 79.4 117.5 13.6 34.1 18.30 T 226 125 P2 15925
FRBE-B-125/230/108/117 125.41 230 108 117.5 19.6 49.3 22.6 TXW 226 125 P3 --
FRBE-B-130/230/110/160 130 230 110 160 19.4 48.7 23.3 -- 130 P 15826
FRBE-B-138/250/82/130 138.11 250 82.6 130.2 15 37.6 22.5 T 228 138 P1 --
FRBE-B-138/250/120/130 138.11 250 120.7 130.2 23.7 59.5 29 TXW 228 138 P2 --
FRBE-B-150/270/88/136 150.81 270 88.9 136.5 17.1 42.8 27.2 T 230 150 P1 --
FRBE-B-150/270/89/136 150.81 270 89 136.5 17.1 42.8 27.2 -- 150 P2 15930
FRBE-B-150/270/120/136 150.81 270 120.7 136.5 24.8 62.1 33.6 TW 230 150 P3 --
FRBE-B-160/290/124/170 160 290 124 170 28.3 70.9 43.3 -- 160 P 15832
FRBE-B-163/290/98/139 163.51 290 98 139.7 21 52.8 33.9 -- 163 P1 15933
FRBE-B-163/290/123/139 163.51 290 123.8 139.7 28.2 70.7 40 TW 232 163 P2 --
FRBE-B-176/320/149/165 176.2 320 149.2 165.1 37.5 94.5 59.6 TW 236 ATW-236H 176 P (45x10)
(38.1x10)
FRBE-B-180/320/149/215 180 320 149 215 37.8 94.9 62.5 -- 180 P 15736
FRBE-B-190/340/174/190 190.5 340 174.6 190.5 49.8 124.9 77.8 TSW 240 190 P --
FRBE-B-200/340/175/240 200 340 175 240 49.8 124.9 78.7 -- 200 P 15740
FRBE-B-220/380/175/240 220 380 175 240 53.8 135.1 99.4 -- 220 P 15744

FLEXIBLE ROLLER BEARINGS WITH SPLIT OUTER RACE (WITHOUT INNER)

FRB-B-45511-(SPLIT-OR) 55 102 100 -- -- -- -- -- -- GPZ-45511

FLEXIBLE ROLLER BEARINGS WITH FLEXIBLE INNER AND SOLID OUTER RACE

Flexible Roller Bearings
JMC. Bearing No. Type S I Z E (mm) EQV. TYPE (EICH GERMANY)
d D L
FRBI-B-160 / 290 / 160 LC or FL 160 290 160 Fixed Type "U" OR Loose Type "BMA"
FRBI -B -240 / 400 / 220 LC or FL 240 400 220 Fixed Type "U" OR Loose Type "BMA"
FRBI -B -250 / 400 / 200 LC or FL 250 400 200 Fixed Type "U" OR Loose Type "BMA"
FRBI -B -250 / 400 / 220 LC or FL 250 400 220 Fixed Type "U" OR Loose Type "BMA"

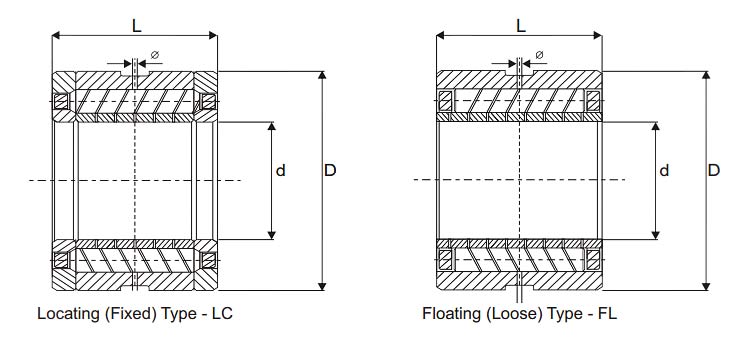

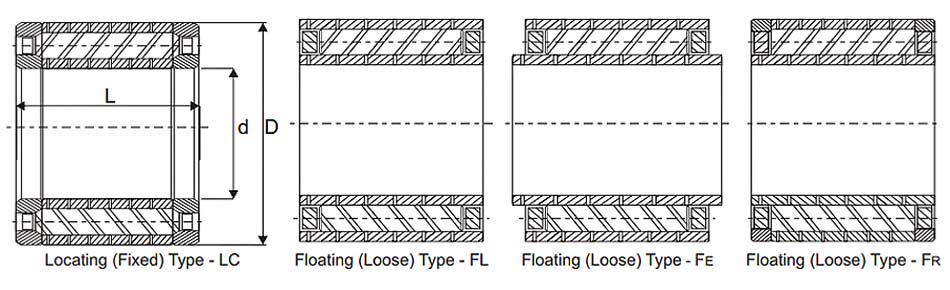

FLEXIBLE ROLLER BEARINGS WITH FLEXIBLE INNER & FLEXIBLE OUTER RACE

Flexible Roller Bearings
JMC. Bearing No. Type S I Z E (mm) EQV. TYPE (EICH GERMANY)
d D L
FRBA -B -90 / 164 / 130 LC or FL 90 164 130 Fixed Type "U" OR Loose Type "B"
FRBA -B -140 / 260 / 170 LC or FL 140 260 170 Fixed Type "U" OR Loose Type "B"
FRBA -B -180/300/150/170 FE 180 300 150/170 Fixed Type "U" OR Loose Type "B"
FRBA -B -280 / 400 / 150 LC or F R 280 400 150 Fixed Type "U" OR Loose Type "B"
FRBA -B -300 / 430 / 200 LC or FL 300 430 200 Fixed Type "U" OR Loose Type "B"
FRBA -B -300 / 430 / 250 LC or FL 300 430 250 Fixed Type "U" OR Loose Type "B"
FRBA -B -330 / 450 / 250 LC or FL 330 450 250 Fixed Type "U" OR Loose Type "B"

While placing order, mention required type of Bearing
