Roll neck bearings are very heavily loaded and subjected to high pressure. They are used where space restriction in radial direction is very severe.

This is a bearing of low section heights with high load carrying capacity. The available mounting space should be primarly used to accommodate the radial bearings since by comparison to the radial loads, the axial loads are relatively small.

Cylindrical Roller Bearing having the same cross section and the same ring sections accommodates larger diameter roller than a spherical roller bearing or a tapered roller bearing. Since the Roller diameter is the factor with the strongest impact on the load rating, the Cylindrical Roller has the highest load carrying capacity when compared to the other bearing types-on the basis of identical boundary dimensions.

A high degree of accuracy can be achieved with bearing comprising of parts of simplest geometry. Expending the same amount of workmanship the Cylindrical Roller Bearing will therefore exhibit a higher running accuracy than the tapered rollers or the Spherical Roller Bearing. For high speed rolls the low rolling contact friction characteristic of the Cylindrical Roller Bearing is highly favourable.

Within a given mounting space Cylindrical Roller Bearing offer the greatest load carrying capacity. This bearing is suitable for highest radial loads and owing to its low friction coefficient, for highest speeds.

We can supply complete Bearing as well as Components (e.g.) as :

  • Complete Bearing : (MRCRB4-B-260/400/290 A)
  • Outer Race with Roller Set & Cage : (MRCRB4 - R 260/400/290 A)
  • Inner Race : (MRCRB4 - L 260/400/290 A)

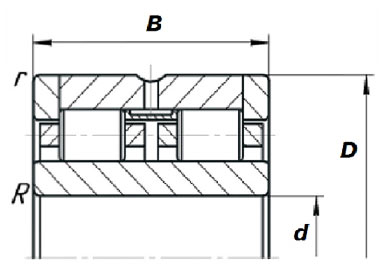

MULTI ROW CYLINDRICAL ROLLER BEARINGS - DOUBLE ROW

Multi Row Cylindrical Roller Bearings
JMC. No. S I Z E (mm) Load rating Tons WT. Kg. Type EQV. No.
d D B Dyn. C Stat. Co
MRCRB2-B-460/680/218 460 680 218 375 855 375 SPL USSR 4202192
MRCRB2-B-530/710/180 530 710 180 318 792 219 SPL USSR 42629/530
MRCRB2-B-710/950/243/C3 710 950 243 57 1510 504 SPL USSR 42629/710

MULTI ROW CYLINDRICAL ROLLER BEARINGS - DOUBLE ROW, TAPERED BORE

Multi Row Cylindrical Roller Bearings
JMC. No. S I Z E (mm) Load rating Tons WT. Kg. Type EQV. No.
d D B Dyn. C Stat. Co
MRCRB2-B-NN-K-320/480/121 320 480 121 132 258 73.7 1 USSR 3182164
MRCRB2-B-NN-K-360/540/134 360 540 134 165 332 105 1 USSR 3182172
MRCRB2-B-NN-K-400/600/148 400 600 148 203 141 144 1 USSR 3182180
MRCRB2-B-NN-K-460/680/163 460 680 163 253 533 196 1 USSR 3182192

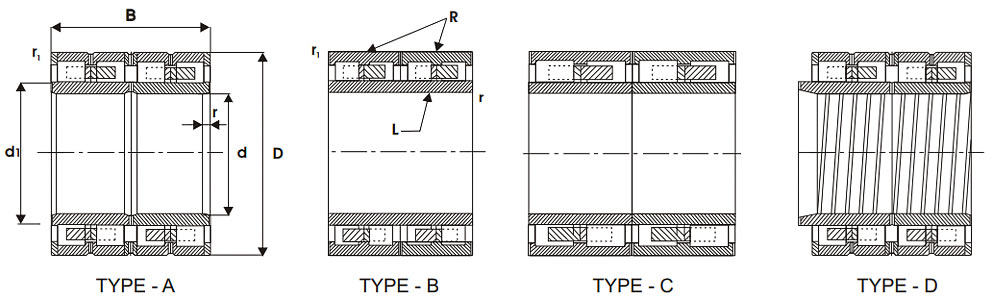

MULTI ROW CYLINDRICAL ROLLER BEARINGS - FOUR ROW

Multi Row Cylindrical Roller Bearings
JMC. No. S I Z E (mm) Load rating Tons WT. Kg. Type EQV. No.
d D B d1 Dyn. C Stat. Co
MRCRB4-B-100/140/80 100 140 80 110 42 66 5 B FAG-537676
MRCRB4-B-120/165/90 120 165 90 132 50 76 5.55 B FAG-537675
MRCRB4-B-145/210/155 145 210 155 166 102 175 18 B SKF-314625 A FAG-511605
KOYO-29FC21155C4
MRCRB4-B-145/225/156 145 225 156 169 105 160 22.7 B SKF-313924 A FAG-538522
MRCRB4-B-150/230/156 150 230 156 174 105 180 24 B SKF-313891 A FAG-506962 OR FAG-508955
MRCRB4-B-160/230/130 160 230 130 180 81 130 17.6 B SKF-314190 FAG-502894A
MRCRB4-B-160/230/168 160 230 168 179 115 200 23.5 B SKF-315189A FAG-510150
MRCRB4-B-165/225/168 165.10 225.45 168.3 181 100 190 20 C SKF-2x315642 VJ202 FAG-529468.N12BA
MRCRB4-B-170/230/130 170 230 130 188.5 75 125 15 B SKF-313673 FAG-508370
MRCRB4-B-170/240/156 170 240 156 190 115 210 19 B NSK-170RV2403C*OB
MRCRB4-B-180/260/168 180 260 168 202 115 195 29.7 B SKF-313812 A FAG-507536
MRCRB4-B-190/270/200 190 270 200 212 150 285 36.5 B SKF-314199 B FAG-508657
MRCRB4-B-190/280/200 190 280 200 214 155 295 42 B SKF-314049 A FAG-510199
MRCRB4-B-200/270/170 200 270 170 222 125 255 28.2 B SKF-314553 A FAG-522742
MRCRB4-B-200/270/200 200 270 200 222 130 260 28.2 B ARB-AD 5739D / NSK-200RV
2703C4P5AU332*OB
MRCRB4-B-200/280/170 200 280 170 223 145 250 33.5 B SKF-314385 FAG-549864
MRCRB4-B-200/280/200 200 280 200 222 162 300 39 B SKF-313893 FAG-508726
MRCRB4-B-200/290/192 200 290 192 226 172 295 42 B SKF-313811 FAG-512580
MRCRB4-B-200/310/200 200 310 200 229 195 270 59 B FAG-524373
MRCRB4-B-210/290/192 210 290 192 236 167 335 38.7 B FAG-507628/SKF-313646 NSK-210RV2901C3*OB
MRCRB4-B-220/310/192 220 310 192 246 182 300 45.5 B SKF-313839 FAG-507333
MRCRB4-B-220/310/225 220 310 225 244 210 400 54.2 B SKF-313894 B FAG-514461

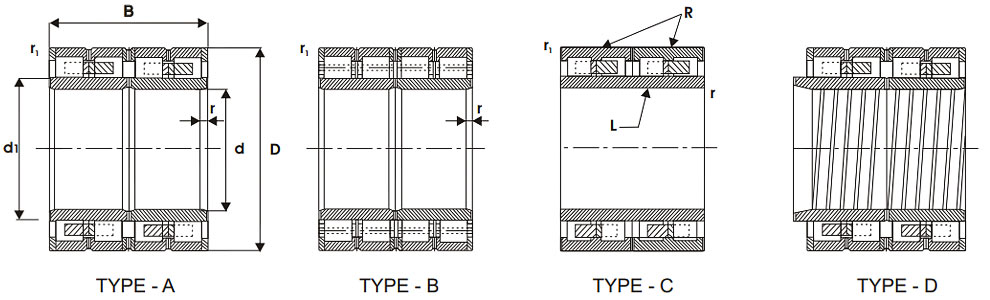

MULTI ROW CYLINDRICAL ROLLER BEARINGS - FOUR ROW

Multi Row Cylindrical Roller Bearings
JMC. No. S I Z E (mm) Load rating Tons WT. Kg. Type EQV. No.
d D B d1 Dyn. C Stat. Co
MRCRB4-B-230/330/206 230 330 206 260 200 370 58 B SKF-313824
FAG-508727
MRCRB4-B-230/365/250 230 365 250 266 300 410 100 A SKF-313581 A FAG-529113
MRCRB4-B-240/330/220 240 330 220 270 190 390 57.5 B SKF-313921 FAG-508368
MRCRB4-B-260/360/230 260 360 230 - 205 380 77 SPL KOYO-452549
MRCRB4-B-260/370-220/240 260 370 220/240 292 210 390 79.5 D FAG-536897
MRCRB4-B-260/370/220 260 370 220 292 210 390 77 B SKF-313823 FAG-507336
MRCRB4-B-260/400/290 260 400 290 296 400 600 135 A SKF-313427 FAG-518214
MRCRB4-B-280/390/220 280 390 220 312 220 410 82 B SKF-313822 FAG-507339
MRCRB4-B-280/390/275 280 390 275 308 270 640 100 C SKF-314719C
MRCRB4-B-290/440/310 290 440 310 328 410 700 164 B FAG-517796
MRCRB4-B-300/420/300 300 420 300 332 410 780 130 A SKF-314484 D FAG-524289 B
MRCRB4-B-320/460/240 320 460 240 364 270 650 140 C SKF-BC2B 322216B/VJ202
MRCRB3-B-325/470/ 271/281[SG] 325 470 271/281 364.13 395 810 166 SPL BSC-456986
MRCRB4-B-330/460/340 330 460 340 365 430 900 175 A SKF-313445 C FAG-543447
MRCRB4-B-340/480/350 340 480 350 378 560 1125 207 A1 FAG-525837 A
MRCRB4-B-340/480/350 340 480 350 378 520 1050 205 A SKF-314485A FAG-527634
MRCRB4-B-360/500/250 360 500 250 394 270 650 140 C SKF-BC2B 320075D/VJ202
MRCRB4-B-374/520/ 360/370[SG] 374.65 520 360/370 414.6 595 1190 250 SPL BSC-456985
MRCRB4-B-380/540/300 380 540 300 421 505 900 217 A SKF-313030 A FAG-541982
MRCRB4-B-380/540-380/400 380 540 380/400 424 570 1370 295 D SKF-315606 / KOYO-76FCS4380
MRCRB4-B-400/560/410 400 560 410 445 650 1250 325 A SKF-313015A FAG-513769A
MRCRB4-B-440/620/450 440 620 450 487 790 1950 440 A SKF-314554 /
KOYO-88FC62450A
MRCRB4-B-536/762/558 536.176 762.030 558.800 598 1250 2900 872 A1 SKF-313535B FAG-524544A
