This type of Bearing are widely used in heavy industries like Steel Plants for conveyor system. Main advantage is within a given space double row will take maximum radial load. Generally they have one double cup (outer race) and two cones (inner race).

To achieve the required radial and axial clearance a spacer is provided in the factory, selectively for each bearing before final assembly.

By this arrangement assembly in the user shop floor is made much easier. Nut can be fully tightened and locked. No fine adjustment, taking back by 1/6 turn or torque loading are necessary.

No separate provision is required to take thrust load. Radial as well as axial clearance can be either widened or narrowed depending on the end use requirement like :
a) Tolerance to misalignment.
b) Temperature change.
c) Type of load (i.e.) frequency, direction, impact etc.

The Bearing and chock assembly can be removed from the next as a unit without loss or condemnation of lubricant. The chock assembly can be re-installed on another roll neck in a minimum of time. The space limitations on medium duty installations have made it necessary to provide narrow double row Taper Roller Bearings, thereby the bearings become cheaper in cost.

Applications where high load capacity in a minimum of width required, double row Taper Roller Bearings have been popular. In high speed applications like rolling mills subject to medium separating forces, double row Taper Roller Bearings with taper bore can be used. Assembly of two row Taper Roller Bearing is very easy. No pre-loading is necessary. It is a simplified design eliminating cumbersome construction and extra thrust devices.

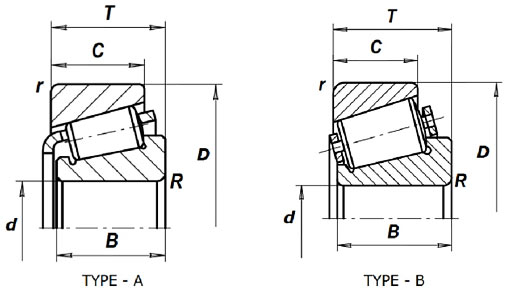

TAPER ROLLER BEARINGS - SINGLE ROW

Taper Roller Bearings
JMC No. S I Z E (mm) Load ratings (Tons) WT. Kg. Type EQV. No.
d D T B C Dyn. C Stat. Co.
TRB1-B-90/160/50 90 160 49.5 46 40.5 27 40 4.1 A USSR 7718
TRB1-B-105/215/78 105 215 77.5 73 60 60 83 12.7 A USSR 7721
TRB1-B-120/180/38 120 180 38 36 31 21 33 3.22 A USSR 2007124
TRB1-B-160/375/87 160 375 86.55 79.4 50 84 101 39.6 A USSR 7832*
TRB1-B-160/240/51 160 240 51 48 41 38 64 8.0 A USSR 2007132
TRB1-B-160/290/84 160 290 84 80 67 81 132 22.2 A USSR 7532
TRB1-B-170/230/38 170 230 38 36 31 28 58 4.5 A USSR 2007934
TRB1-B-180/320/91 180 320 91 86 71 99 162 29.5 A USSR 7536
TRB1-B-190/260/45 190 260 45 45 34 36 77 6.84 A USSR 2007938
TRB1-B-190/290/50 190 290 50.25 46 40 38 61 11.8 A USSR 7138
TRB1-B-190/340/97 190 340 97 92 75 95 155 35.4 A USSR 7538
TRB1-B-205/485/117 205 485 116.75 95.2 68 116 161 85.9 A USSR 7841
TRB1-B-220/340/76 220 340 76 72 59 92 162 22.1 A USSR 2007144
TRB1-B-240/320/51 240 320 51 48 41 40 78 9.23 A USSR 2007948
TRB1-B-260/360/64 260 360 64 60 51 63 122 18.4 A USSR 2007952
TRB1-B-260/540/110 260 540 110 102 80 185 259 108.8 A USSR 7352*
TRB1-B-300/460/100 300 460 100 95 82 124 238 53.3 A USSR 2007160
TRB1-B-420/620/95 420 620 95 90 67 154 290 86.8 A USSR 7184
TRB1-B-520/740/95 520 740 95 86 70 156 330 118 A USSR 77/520*
TRB1-B-600/870/124 600 870 124 118 88 308 623 232 A USSR 71/600*
TRB1-B-710/950/114 710 950 114 106 80 258 610 290 A USSR 10079/710*

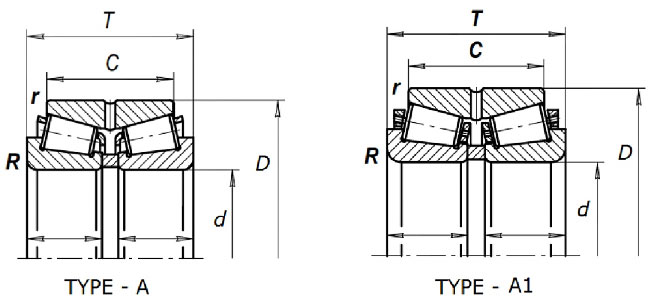

TAPER ROLLER BEARINGS - DOUBLE ROW

Taper Roller Bearings
JMC No. S I Z E (mm) Load ratings (Tons) WT. Kg. Type EQV. No.
d D C T Dyn. C Stat. Co
MRTRB2-B-50/90/45/55 50 90 45 55 15 20 1.4 A USSR 97510
MRTRB2-B-60/110/55/65 60 110 55 65 22 33 2.49 A USSR 97512
MRTRB2-B-70/125/62/75 70 125 62 75 21 31 3.5 A USSR 97514
MRTRB2-B-75/130/62/75 75 130 62 75 27 42 3.8 A USSR 97515
MRTRB2-B-90/160/78/95 90 160 78 95 25 34 7.4 A USSR 97518
MRTRB2-B-100/180/92/112 100 180 92 112 50 86 10.9 A USSR 97520
MRTRB2-B-105/190/96/118 105 190 96 118 57 99 13.75 A USSR 97521
MRTRB2-B-120/200/90/110 120 200 90 110 50 95 11.7 A USSR 2097724
MRTRB2-B-130/210/90/110 130 210 90 110 55 100 13.6 A USSR 2097726
MRTRB2-B-130/230/120/150 130 230 120 150 90 170 25.4 A USSR 97526
MRTRB2-B-150/250/112/138 150 250 112 138 75 145 25.8 A USSR 2097730
MRB2-B-150/270/138/172 150 270 138 172 110 200 39.1 A USSR 97530
MRTRB2-B-160/270/120/150 160 270 120 150 95 185 34.9 A USSR 2097732
MRTRB2-B-180/250/76/95 180 250 76 95 50 110 13.2 A USSR 2097936
MRTRB2-B-180/280/108/134 180 280 108 134 90 175 27.9 A USSR 2097136
MRTRB2-B-180/300/134/164 180 300 134 164 110 225 43.2 A USSR 2097736
MRTRB2-B-200/280/97/117 200 280 97 117 65 150 20.8 A USSR 2097940
MRTRB2-B-200/310/123/152 200 310 123 152 105 220 39.2 A USSR 2097140
MRTRB2-B-200/340/150/184 200 340 150 184 150 300 61.5 A USSR 2097740
MRTRB2-B-220/300/88/110 220 300 88 110 73 170 21.4 A USSR 2097944
MRTRB2-B-220/340/130/165 220 340 130 165 120 250 47.1 A USSR 2097144
MRTRB2-B-220/370/166/199 220 370 166 199 170 330 76.2 A USSR 2097744
MRTRB2-B-240/320/90/110 240 320 90 110 75 180 22 A USSR 2097948
MRTRB2-B-240/360/130/165 240 360 130 165 130 285 52.9 A USSR 2097148
MRTRB2-B-240/400/168/210 240 400 168 210 190 360 96.3 A USSR 2097748
MRTRB2-B-260/360/109/133 260 360 109 133 100 240 38.3 A USSR 2097952
MRTRB2-B-260/400/146/186 260 400 146 186 165 345 81.5 A USSR 2097152
MRTRB2-B-260/440/180/225 260 440 180 225 235 430 126 A USSR 2097752
MRTRB2-B-280/420/154/188 280 420 154 188 175 350 82.5 A USSR 2097156
MRTRB2-B-300/420/128/160 300 420 128 160 125 140 62.4 A USSR 2097960
MRTRB2-B-300/460/165/214 300 460 165 214 200 465 119 A USSR 2097160
MRTRB2-B-300/500/125/180 300 500 125 180 205 400 132 A USSR 97760
MRTRB2-B-340/460/128/160 340 460 128 160 150 380 71   USSR 2097968
MRTRB2-B-340/580/170/241 340 580 170 241 309 580 221.5 A USSR 1097768
MRTRB2-B-360/480/128/159 360 480 128 159 157 406 74.4 A USSR 2097972
MRTRB2-B-380/620/170/241 380 620 170 241 313 609 251 A USSR 1097776
MRTRB2-B-400/600/150/245 400 600 150 205 260 565 179 A USSR 97180
MRTRB2-B-420/620/150/205 420 620 150 205 265 380 187 A USSR 97184
MRTRB2-B-420/700/200/275 420 700 200 275 455 930 400 A USSR 1097784
MRTRB2-B-440/650/152/211 440 650 152 211 271 608 213 A USSR 97188
MRTRB2-B-460/680/175/230 460 680 175 230 324 695 248 A USSR 97192
MRTRB2-B-480/650/130/179 480 650 130 179 213 515 168 A USSR 1097996
MRTRB2-B-530/710/136/190 530 710 136 190 265 654 193.5 A USSR 10979/530*
MRTRB2-B-560/750/156/212 560 750 156 212 276 705 238 A USSR 10979/560*
MRTRB2-B-600/800/160/209 600 800 160 209 344 918 283 A USSR 10979/600*
MRTRB2-B-600/870/198/269 600 870 198 269 527 1245 497 A USSR 971/600*
MRTRB2-B-710/950/175/239 710 950 175 239 442 1220 445 A USSR 10979/710*
MRTRB2-B-100/180/67/83 100 180 67 83 45 68 8.2 A NTN-430220XU
MRTRB2-B-177/247/103/84 177.80 247.65 84.138 103.18 65 105 13.7 A TIMKEN 67791/
67720DW
MRTRB2-B-228/355/152/114 228.6 355.6 152.4 114.3 110 260 52.8 A1 TIMKEN-HM746646/
HM746610CD
(C29360) TDO
MRTRB2-B-200/340/105-PC 200 340 105.13 105.01 - - 45 SPL BSC-457503

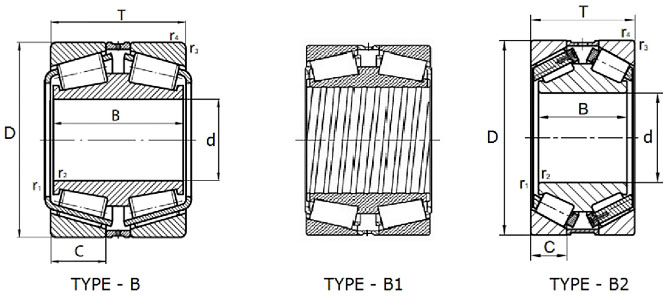

TAPER ROLLER BEARINGS - DOUBLE ROW

Taper Roller Bearings
JMC No. S I Z E (mm) Load ratings (Tons) WT. Kg. Type EQV. No.
d D T B C Dyn. C Stat. Co.
MRTRB2-B-260/420/169/170 260 420 169 170 70 190 377 88.5 - USSR 47752
MRTRB2-B-400/600/189/190 400 600 189 190 63 223 508 184 B2 USSR 847180
MRTRB2-B-500/720/217/185 500 720 217 185 75 235 532 260 B2 USSR 40471/500
MRTRB2-B-560/822/240/242 560 822 240 242 80 363 900 440 B2 USSR 8471/560
JMC No. S I Z E (mm) Load ratings (Tons) WT. Kg. Type EQV. No.
d D T B Dyn. C Stat. Co.
MRTRB2-B-177/288/123/123 177.8 288.925 123.825 123.825 115 200 31.6 B TIMKEN-HM237546D/ HM237510,
HM237510EA
MRTRB2-B-203/368/158/152 203.2 368.3 158.75 152.40 175 325 77.2 B1 TIMKEN-EE420800D/ EE421450,
Y4S-421450 (FAG-541397)
MRTRB2-B-254/438/165/165 254 438.15 165.10 165.10 225 400 104.5 B1 TIMKEN-EE738101D/ EE738172,
Y1S738172 (FAG-547757)
