JMC Spiral (Flexible) Bush Bearings are made out of high quality spring steel, which withstands for high temperature environment. These Bearings are mainly used in, CONTINUOUS CASTING MACHINES :
# MOULD : Back Up Plate Assembly and Foot Roll Scaffold Assembly.
# SEGMENT'0' : Rolls.

These bearings are also being used in Roller Hearth Furnaces.

Advantages of JMC Spiral (Flexible) Bush Bearings :

  • Easy for mounting
  • Suitable for dusty environment
  • Withstand high temperature
  • Space restrictions force us to use thin walled bearings. JMC Spiral (Flexible) Bush Bearings are very much suitable for such applications.
  • Thin walled Spiral (Flexible) Bushes allows more space for rolling elements with maximum diameter. This will press particles into the coil gap of the Spiral Bushings, while rolling over dust and foreign particles. This results in the smooth running of the bearing rollers.

JMC Spiral (Flexible) Bush Bearings can be supplied with various combinations of side rings and labyrinth rings as per the customers demand.

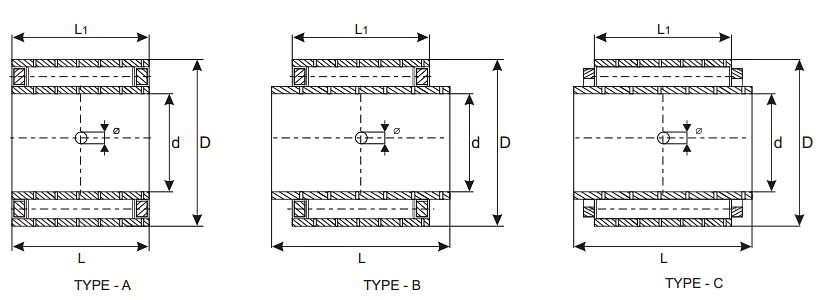

Spiral Flexible Bearings
JMC. Bearing No S I Z E (mm) EQV. TO EICH Load rating - (in KN)
d D L L1 Dyn. C Stat. Co.
SBB-B - 25 / 70 - 60 / 40 25 70 60 40 BR 25/70 - 60 / 40 60 175
SBB-B - 40 / 68 - 58 / 45 40 68 58 45 BR 40/68 - 58 / 45 75 200
SBB-B - 40 / 78 - 57 / 45 40 78 57 45 BR 40/78 - 57 / 45 120 220
SBB-B - 40 / 71 - 32 / 32 40 71 32 32 BR 40/71 - 32 / 32 75 210
SBB-B - 40 / 82 - 80 / 62 40 82 80 62 BR 40/82 - 80 / 62 160 255
SBB-B - 45 / 80 - 70 / 70 45 80 70 70 BR 45/80 x 70 / 70 150 250
SBB-B - 45 / 80 - 73 / 63 45 80 73 63 BR 45/80 x 73 / 63 160 265
SBB-B - 50 / 85 - 70 / 70 50 85 70 70 BR 50/85 - 70 / 70 170 270
SBB-B - 50 / 85 - 80 / 70 50 85 80 70 BR 50/85 - 80 / 70 170 270
SBB-B - 50 / 90 - 60 / 50 50 90 60 50 BR 50/90 - 60 / 50 195 285
SBB-B - 50 / 95 - 50 / 50 50 95 50 50 BR 50/95 - 50 / 50 195 285
SBB-B - 50 / 95 - 65 / 50 50 95 65 50 BR 50/95 - 65 / 50 190 280
SBB-B - 50 / 95 - 85 / 85 50 95 85 85 BR 50/95 - 85 / 85 200 295
SBB-B - 50 / 95 - 95 / 70 50 95 95 70 BR 50/95 - 95 / 70 210 300
SBB-B - 55 / 90 - 73 / 63 55 90 73 63 BR 55/90 - 73 / 63 135 210
SBB-B - 55 / 90 - 90 / 72 55 90 90 72 BR 55/90 - 90 / 72 145 225
SBB-B - 55 / 95 - 73 / 63 55 95 73 63 BR 55/95 - 73 / 63 132 210
SBB-B - 55 / 100 - 65 / 55 55 100 65 55 BR 55/100 - 65 / 55 145 225
SBB-B - 60 / 89 - 73 / 63 60 89 73 63 BR 60/89 - 73 / 63 175 330
SBB-B - 60 / 90 - 65 / 55 60 90 65 55 BR 60/90 - 65 / 55 185 340
SBB-B - 60 / 95 - 73 / 63 60 95 73 63 BR 60/95 - 73 / 63 190 350
SBB-B - 60 / 100 - 67 / 62 60 100 67 62 BR 60/100 - 67 / 62 190 350
SBB-B - 60 / 105 - 73 / 63 60 105 73 63 BR 60/105 - 73 / 63 200 330
SBB-B - 60 / 110 - 105 / 80 60 110 105 80 BR 60/110 - 105 / 80 220 350
SBB-B - 60 / 110 - 105 / 94 60 110 105 94 BR 60/110 - 105 / 94 210 340
SBB-B - 65 / 110 - 73 / 63 65 110 73 63 BR 65/110 - 73 / 63 175 330
SBB-B - 70 / 99 - 73 / 63 70 99 73 63 BR 70/99 - 73 / 63 180 335
SBB-B - 80 / 120 - 73 / 63 80 120 73 63 BR 80/120 - 73 / 63 230 420
SBB-B - 80 / 125 - 70 / 65 80 125 70 65 BR 80/125 - 70 / 65 290 480
SBB-B - 90 / 130 - 73 / 73 90 130 73 73 BR 90/130 - 73 / 73 305 490

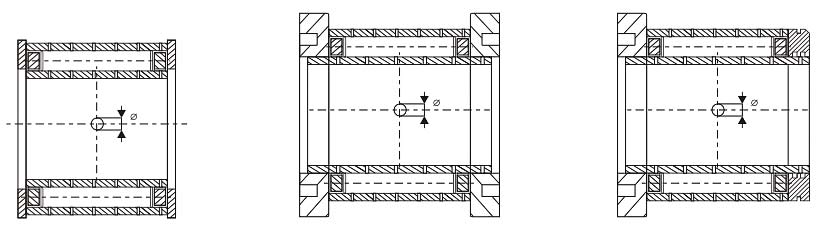

Bearings can be supplied with Side Ring, Labyrinth Ring combinations as per customer requirement, like (e.g.)

Spiral Flexible Bearings
